Model no
878-1

USB Dock UD-11

Mirrorless lens dock

Designed exclusively for the use with a SIGMA Contemporary, Art, or Sports lens and its accessories, the SIGMA USB DOCK allows users to update firmware and customize settings on lenses in these lineups.

• Available for L-Mount and EF-M mount.

As low as 700 NOK

Designed exclusively for the use with a SIGMA Contemporary, Art, or Sports lens and its accessories, the SIGMA USB Dock allows users to update firmware and customize settings on lenses in these lineups.

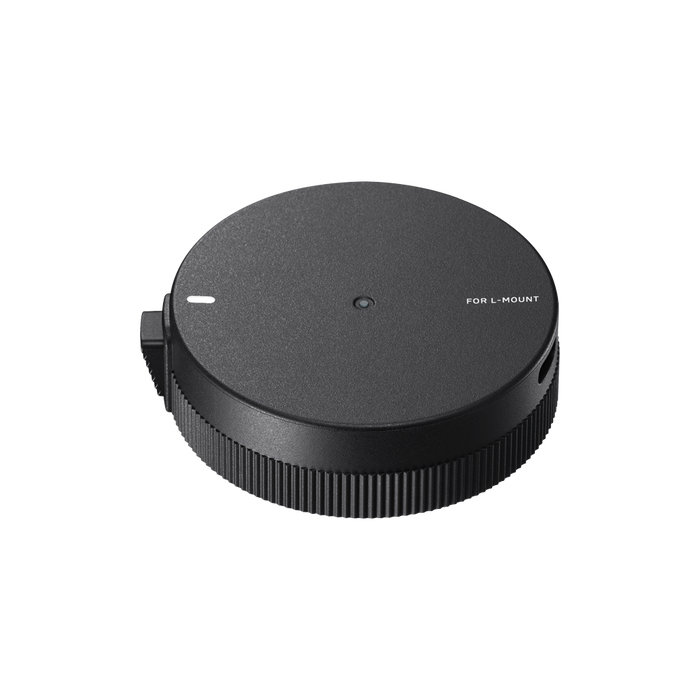

As the latest addition to the lineup, the USB Dock UD-11 is designed for two types of mirrorless camera mounts: the L-Mount and the CANON EF-M mount.

In addition to a firmware update function, users can adjust the sensitivity of speed to the MF function* through the UD-11. As for the connector type, it newly employs USB Type-C.

*Scope of adjustment varies depending on specifications of the individual product.

Features
By connecting the USB DOCK UD-11 to a compatible lens or an accessory, photographers can configure the following settings of the corresponding product via the exclusive SIGMA Optimization Pro software.

Firmware updates
Photographers can update the lens firmware*1, SIGMA MOUNT CONVERTER MC-21*2, and SIGMA TELE CONVERTER TC-1411/TC-2011.
*1 It is possible to update the lens firmware via the cameras that supports this function.
*2 It is possible to update the mount converter MC-21 firmware via the camera.

MF function operation timing adjustment
Users can customize the rotation sensitivity of focus ring on MF mode*1.
*1 Firmware update of the les may be required.

* Additional functionalities to be available at later dates. (Details to be determined)

Condition of operation: Windows

- Core2Duo or faster processor
- Windows 8.1 or Windows 10 preinstalled
- Minimum 2GB of RAM (3GB or more recommended)
- Minimum 1GB of available hard drive space
- 24-bit or greater color depth graphic card (approx. 16.77 million colors)
- 1024 x 768 or higher screen resolution
- USB 2.0 as standard



Condition of operation: Mac OS

- Mac OS 10.13, 10.14, or 10.15 and Intel Processor
- Minimum 2GB of RAM (3GB or more recommended)
- Minimum 1GB of available hard drive space
- 24-bit or greater color depth graphic card (approx. 16.77 million colors
- 1024 x 768 or higher screen resolution
- USB 2.0 as standard



Specifications
More Information
Accessory TypeUSB Dock
EAN

L-Mount
Canon EF-M mount

085126878696
085126878719

Specification

* The appearance and specifications of the product are subject to change without notice
