Model no
302

30mm F1.4 DC DN | C

Lighter and brighter

• Combining outstanding optical performance and compact design
• Introducing a new F1.4 standard lens for mirrorless cameras
• NEW for Fujifilm X Mount
• First F1.4 for Micro Four Thirds and Sony-E mount System
• Contemporary compactness, Art line Image Quality
• Accessories Included: Lens Hood, Rear and Front Cap
• Available in Sony E-mount, Canon EF M-mount, L-Mount, Fujifilm X Mount and MFT-mount
• "Made in Japan” craftsmanship

As low as 3 800 NOK
Offering an opportunity to experience the fun of shooting wide open, with F1.4 brightness
SIGMA 30mm F1.4 DC DN | Contemporary large-aperture standard lens gives owners of mirrorless cameras the opportunity to experience the fun of shooting wide open, with F1.4 brightness. Photographers will enjoy the beautiful bokeh effect that only a large-aperture lens can offer and the exceptionally sharp optical performance expected from a fine prime lens. Leveraging SIGMA’s latest technologies and design insights, this new lens fulfills the concept of the Contemporary line, in which varied elements come together in optimal balance.

A prime lens with a focal length of around 50mm and F1.4 brightness offers an angle of view very similar to human vision. The photographer can use the shallow depth of field at wide-open aperture to take stunning portraits and tabletop still life shots. Or he or she can close the aperture for greater depth of field and shoot landscapes or snapshots. In this way, standard lenses allow photographers to enjoy so many of the fundamental methods of photography and have thus been favorites for decades. Photographers can experience F1.4 brightness and standard lens functionality with a 35mm equivalent focal length of 60mm on the Micro Four Thirds system and 45mm on the Sony E-mount system.

A member of the high-performance Contemporary line, featuring SIGMA’s latest technologies
For optimal balance with light, compact camera bodies with a short flange back distance, SIGMA designed the new SIGMA 30mm F1.4 DC DN | Contemporary lens to be extremely compact. Moreover, the special design of the focus lens group allows fast and smooth AF performance for videography and more. This lens combines a compact design and comfortable operation while prioritizing outstanding image quality. Featuring SIGMA’s latest technologies, this lens digitally corrects optical distortion.

   • Extra-long Hood (Supplied)
The included lens hood is extra-long and features an antireflective coating to manage unwanted light. The hood also features rubber and anti-slip textures to make it easier for the photographer to hold while shooting.

   • TSC used for a more compact structure and enhanced performance
Since new material TSC (Thermally Stable Composite) is highly elastic, it exhibits minimal deformation. Parts made of TSC are therefore less prone to develop gaps between each other over time. The SIGMA 30mm F1.4 DC DN | Contemporary features a lens barrel and aperture parts made of TSC, which contribute both to the compactness of the lens and the smooth functioning of the aperture system. TSC helps increase the precision of cells holding lens elements and parts related to the focus lens group, further enhancing lens performance.

   • Combining compactness with outstanding optical performance

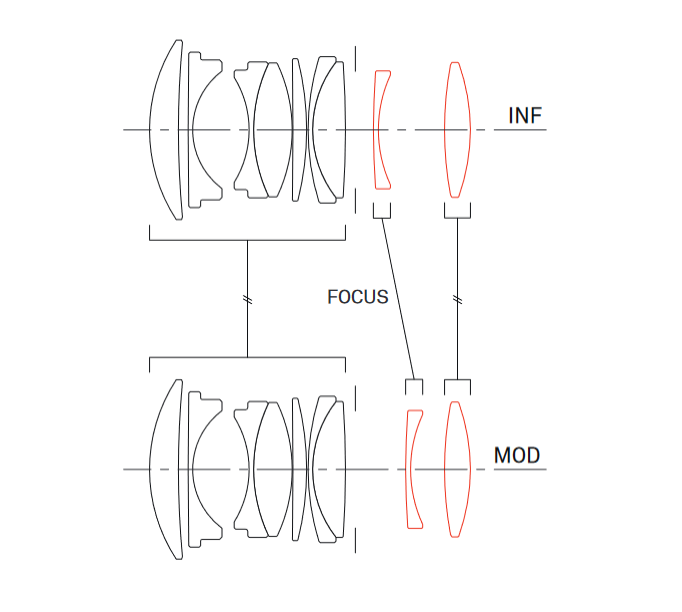

The front lens element features high-refractive index, high-dispersion glass for extra power and a shorter overall lens length. To optimize the lens for mirrorless cameras, two aspherical lens elements help ensure outstanding image quality and overall compactness. The SIGMA 30mm F1.4 DC DN | Contemporary features SIGMA’s inner focus technologies, while lighter lens elements in the focus lens group make possible a more compact actuator. Moreover, this lens offers outstanding stability whether the photographer is shooting handheld or has the camera placed on a surface. Structurally, the lens features materials and parts that contribute to its compact, lightweight structure. In summary, this is an unprecedented lens that combines outstanding optical performance with exceptional portability and usability.

   • Mount with dust- and splash-proof construction
The mount features a special sealing to make the lens an excellent choice in a wide variety of conditions.
* L-Mount only

Image quality rivaling our Art line lenses. A compact, lightweight lens offering outstanding
image quality with F1.4 brightness.
In addition to featuring an optimized layout and power distribution, this lens incorporates one aspherical lens element and one double aspherical lens element, as well as an element made of high-refractive index, high-dispersion glass with high anomalous partial dispersion. By effectively leveraging these technologies, the lens delivers an outstanding level of light to the edges of the image while minimizing transverse chromatic aberration. To correct distortion, the lens takes advantage of the image correction* capabilities of the mirrorless camera body, using the corrective power of the optical system to enhance sharpness. The final result is an extremely compact lens that delivers image quality that rivals that of our Art line lenses.
* Limited to what the camera supports.

   • EOS-M series cameras incompatible with aberration correction
Cameras incompatible with distortion correction
EOS M5, EOS M6, EOS M100, EOS M10, EOS M3, EOS M2, EOS M

   • Designed to minimize flare and ghosting
From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. SIGMA’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions. The included lens hood can be attached to block out extraneous light, which can have a negative effect on rendering performance.

   • Shallow depth of field for a beautiful bokeh effect
The large-diameter lens with F1.4 brightness makes possible a shallow depth of field for a beautiful bokeh effect—unavailable until now in a standard lens for mirrorless cameras.

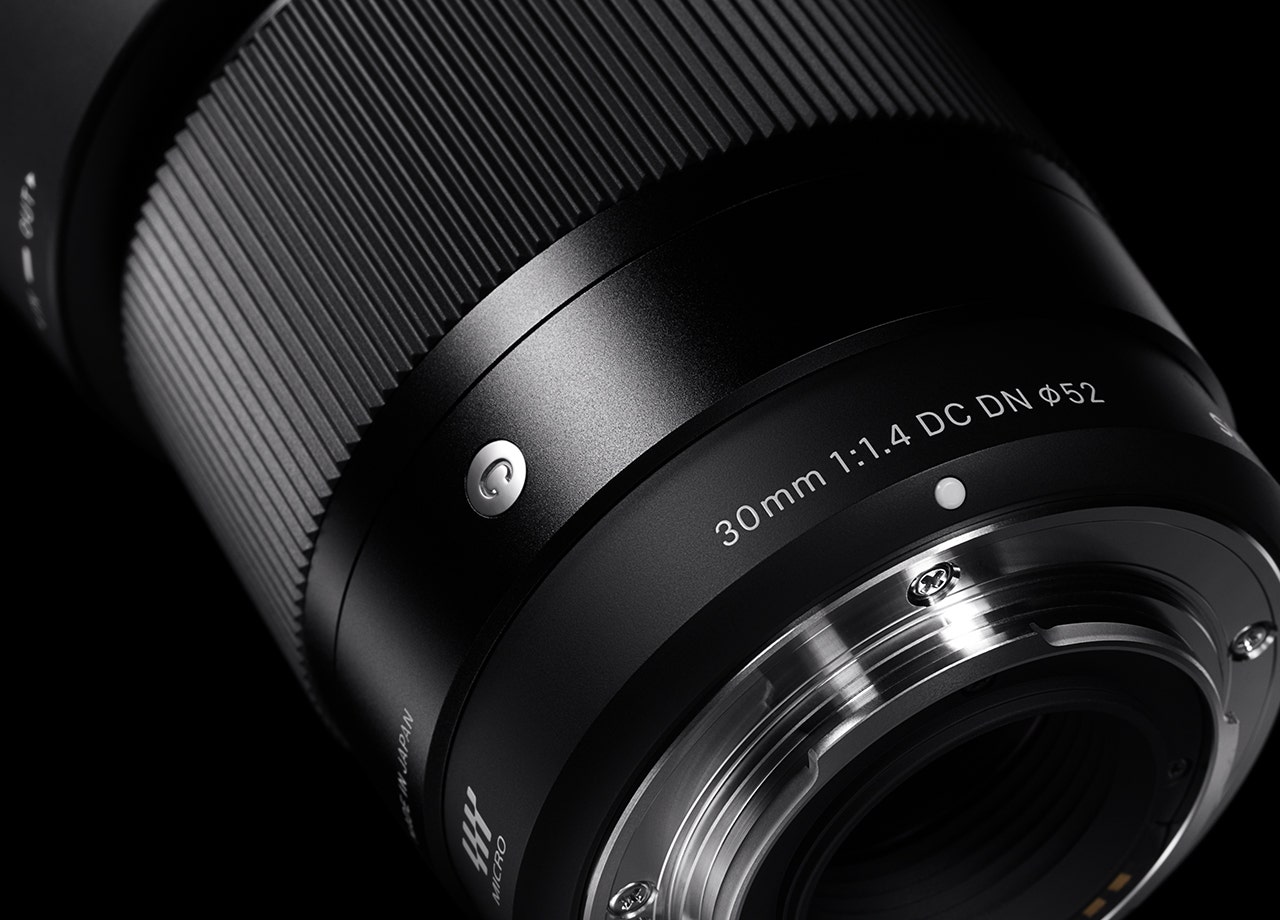

   • High-precision, rugged brass bayonet mount
The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

   • Rounded diaphragm
The 9-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.




Specifications
More Information
Product LinesContemporary
Construction9 Elements in 7 Groups
Lens TypeStandard
Sensor SizeAPS-C, Micro Four Thirds
Angle of view50.7º
Number of diaphragm blades9 (Rounded Diaphragm)
Minimum apertureF16
Minimum focusing distance30 cm
Maximum magnification ratio1:7
Dimensions (diameter x length)

Sony E-mount
Canon EF-M
X Mount
Micro Four Thirds
L-mount

⌀ 64.8 mm x 73.3 mm
⌀ 64.8 mm x 73.3 mm
⌀ 64.8 mm x 73.6 mm
⌀ 64.8 mm x 72.1 mm
⌀ 65.4 mm x 71.3 mm

Weight (g)

Sony E-mount
Canon EF-M
X Mount
Micro Four Thirds
L-mount

265 g
270 g
275 g
260 g
280 g

Filter diameter52mm
Edition numberC016 (X Mount: C022)
Supplied AccessoriesLens Hood LH586-01, Front Cap LCF-52mm III, Rear Cap LCR II
AccessoriesWR Protector Filter 52mm, WR C-PL Filter 52mm, Protector Filter 52mm, USB-dock UD-11 (EF-M and L-mount)
EAN

Sony E-mount
Canon EF-M
X Mount
Micro Four Thirds
L-mount

085126302658
085126302719
085126302757
085126302634
085126302696

EANEAN

* The appearance, specifications, and the like of the product are subject to change for improvement without notice.

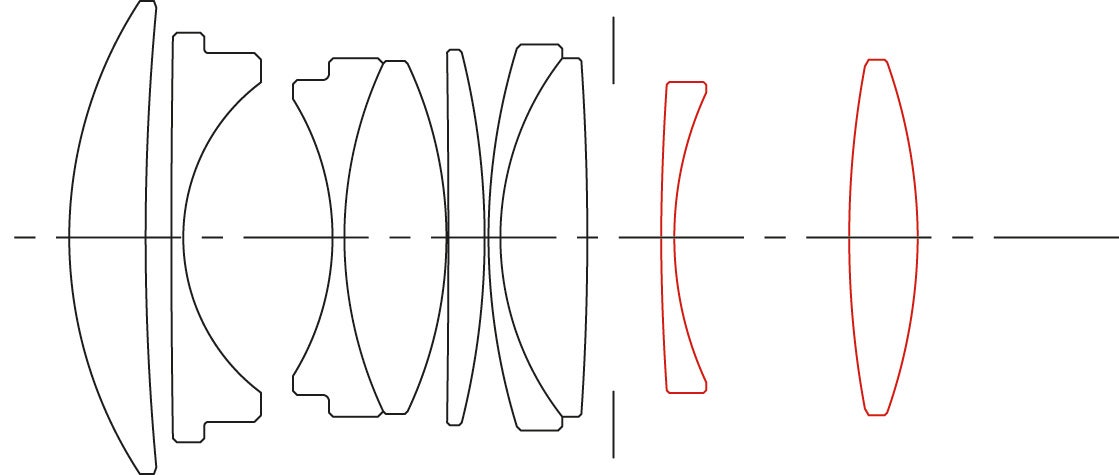

Lens Construction

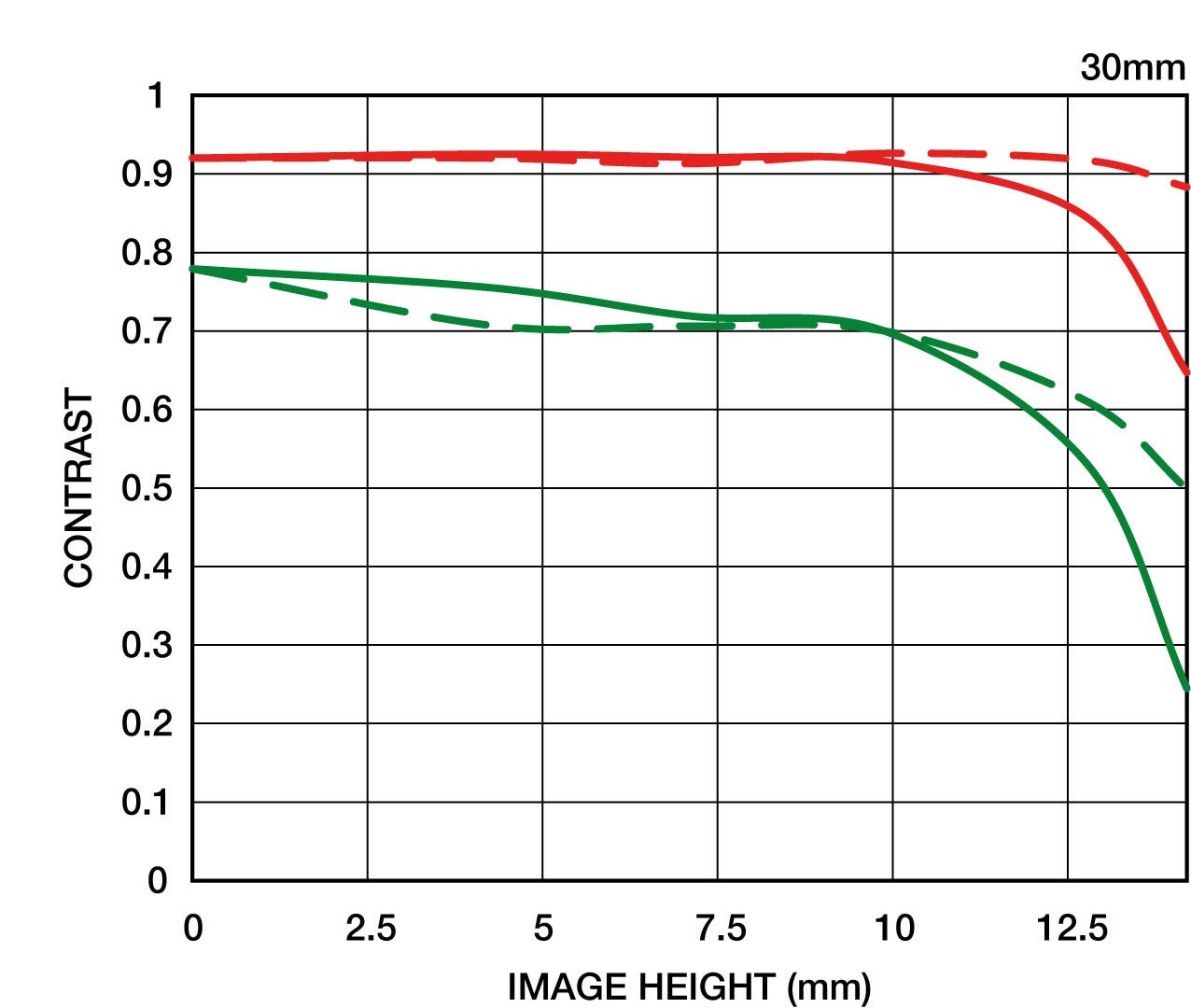

Diffraction MTF Chart

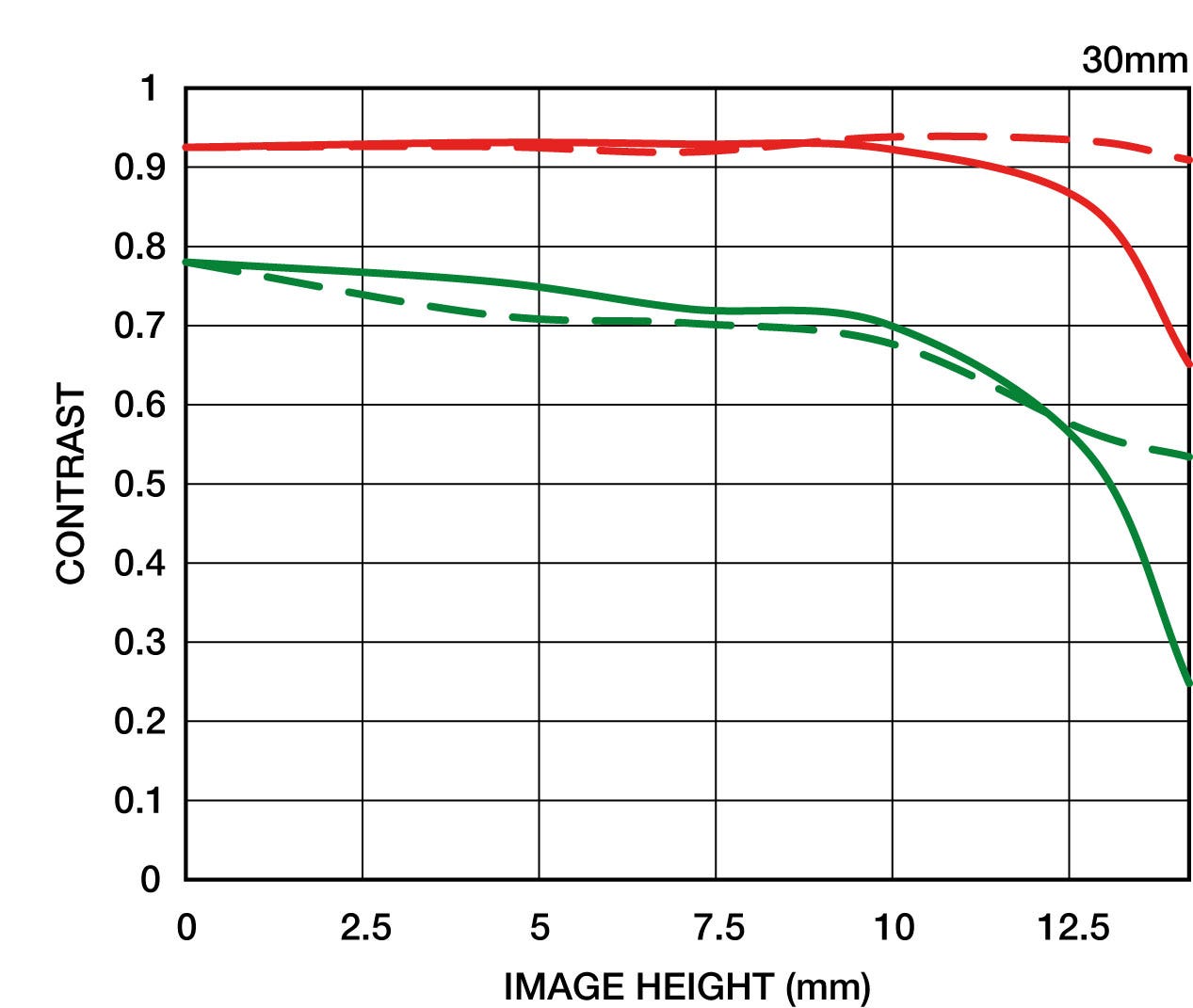

Geometrical MTF Chart
